Advantages of Coreprogram :
1.Coreprogram Color Sorter is committed to developing advanced core technology ,We provide
you with quality machines and excellent services
2. AI+Multidimensional space algorithm can accurately identify subtle shape differences to meet
fine classification requirements and get good shape selection and color selection.
3. Online Engineering service is always available while providing installation and after-sale service
locally in all countries.
4. intelligent high-frequency solenoid valve with high sorting accuracy, ultra-low air consumption
and high switching frequency realizes optimized carryover ratio. Its perfect self-recovery system
ensures low maintenance cost and long lifetime over 15 billion times.
Technical Parameters:
| Model | Capacity (t/h) |
Optimized Carryover (bad:good) |
Sorting Accuracy (%) |
Power (Kw) |
Voltage (V/Hz) |
Dimension L×W×H(mm) |
Weight (kg) |

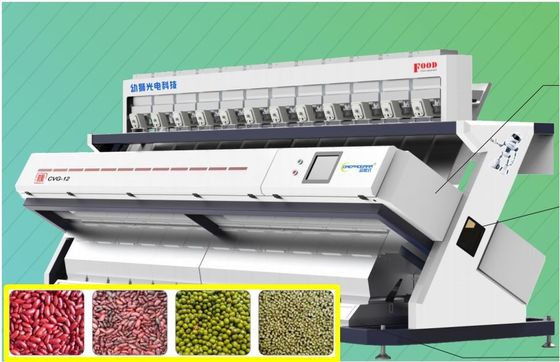

| XCS80 | 0.8-2.0 | >20:1 | >99.9 | 0.5-0.8 | 220/50 | 967*1553*1784 | 286 |
| CVG-5 | 1.0-2.5 | >20:1 | >99.9 | 3.3 | 220/50 | 2617*2077*1795 | 1532 |
| CVG-6 | 1.2-3.0 | >20:1 | >99.9 | 4.2 | 220/50 | 2955*2077*1795 | 1752 |
| CVG-7 | 1.4-3.5 | >20:1 | >99.9 | 5.0 | 220/50 | 3293*2077*1795 | 1910 |
| CVG-8 | 1.6-4.0 | >20:1 | >99.9 | 6.0 | 220/50 | 3641*2077*1795 | 2170 |
| CVG-10 | 2.0-5.0 | >20:1 | >99.9 | 7.05 | 220/50 | 4317*2077*1795 | 2520 |
| CVG-12 | 2.4-6.0 | >20:1 | >99.9 | 8.3 | 220/50 | 4993*2077*1795 | 2960 |
Note: Due to different raw materials and different impurities ratio , parameters above
will vary to some extent ,which are references for you choosing a suitable model.
Working Schematic :
From the schematic ,we can learn that when the materials enter the chute ,the sensor will recognize the shape and color of materials, if there are some specked ,splitted ,rotten and other defects,the ejector system will release compressed air to change the path of rejected materials with defects into rejected hole . The accepted materials will come out from the accepted hole .
• One year quality warranty for the machine and spare parts.
• Engineers service for installation overseas.
• Whole-life after-sales service and free consultation.
• Customized requirements available.
• Technician guide at the site.
• 24 Hrs online service.
