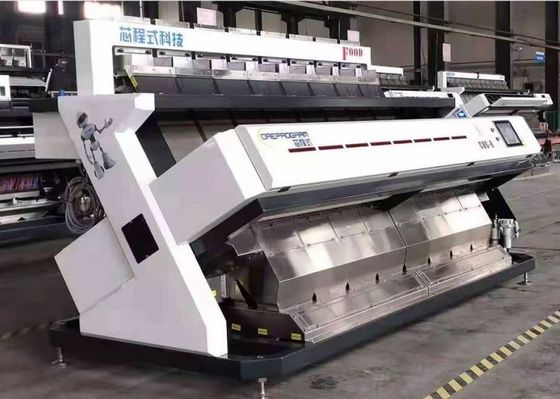

RGB Full Color Camera High precision 8 Chutes Garlic Color Sorting Machine
Main Features:
1. Advanced Image Acquisition System
High resolution monochromatic camera or RGB camera(5400 pixels) with high quality industrial
lens to achieve clear and accurate image acquisition.The camera could capture the micro defects
of material instantly.
2. Intelligent Image Processing Algorithm
Color sorting algorithms of gray level,color difference and HSV are perfectly combined with
shape sorting algorithms of size,circular degree,texture etc,and successfully solved a series of
high difficulty color sorting problems,and dramatically enhance the sorting accuracy.
3. High Quality Solenoid Valve(ejector)
The valve has longer lifespan,high frequency and low air consumption.The working frequency is
1000 times/s,which guarantees the accurate and perfect ejecting performance .
4. High Efficiency And Reliable Light Source
Advanced LED lighting technology with advantages of super high intensity,long lifetime&perfect
performance.
5. Simple Operation, Easy to Learn And Use
Simple optical system design, precise automatic correction system, combined with the
well-designed human-machine interface to simplify the complexity of machine commissioning
and use, ensuring the simple operation and the machine is easy to learn and use.
Technical Parameters:
| Model | Capacity (t/h) |
Optimized Carryover (bad:good) |
Sorting Accuracy (%) |
Power (Kw) |
Voltage (V/Hz) |
Dimension L×W×H(mm) |
Weight (kg) |
| XCS80 | 0.6-1.2 | >20:1 | >99.9 | 0.5-0.8 | 220/50 | 967*1553*1784 | 286 |
| CVG-5 | 3-5 | >20:1 | >99.9 | 3.3 | 220/50 | 2617*2077*1795 | 1532 |
| CVG-6 | 3-6 | >20:1 | >99.9 | 4.2 | 220/50 | 2955*2077*1795 | 1752 |
| CVG-7 | 3.5-7.5 | >20:1 | >99.9 | 5.0 | 220/50 | 3293*2077*1795 | 1910 |
| CVG-8 | 4-8.5 | >20:1 | >99.9 | 6.0 | 220/50 | 3641*2077*1795 | 2170 |
| CVG-10 | 5-11 | >20:1 | >99.9 | 7.05 | 220/50 | 4317*2077*1795 | 2520 |
| CVG-12 | 6-13 | >20:1 | >99.9 | 8.3 | 220/50 | 4993*2077*1795 | 2960 |
Note: Due to different raw materials and different impurities ratio , parameters above
will vary to some extent ,which are references for you choosing a suitable model.
Working Schematic:
Sorting Case :
Example Of Garlic Sorting
Raw Material Accepted Rejected
Example Of Sliced Garlic Sorting
Raw Material Accepted Rejected
