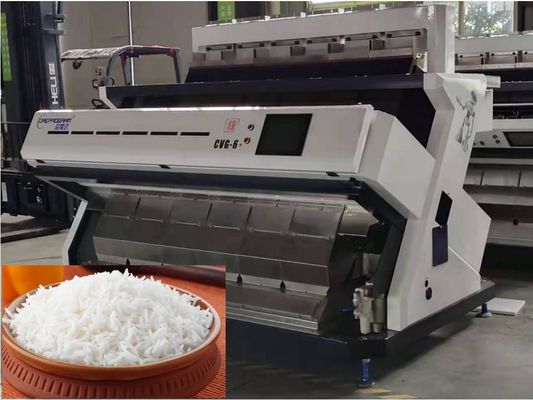

6 Chute HD Camera Quality Components Rice Color Sorter Sorting Equipment
Main Features:
1. Light Source System
Longer lifetime, higher purity spectrum, guarantees high-definition image quality, can meet the
sorting of more than a thousand colors, and selects the color of miscellaneous by identifying
subtle changes in colors.
2. Intelligent Dust-cleaning System
Through the blowing system, a high-speed airflow is generated to quickly remove dust and
light objects on the glass in front of the lens.
3. Artificial Intelligence Design Concepts
Touch screen display, operation platform, user-friendly and easy-to-learn operation interface,
making color selection simpler and smarter, reducing manual errors, and providing powerful
learning capabilities.
4. Float Jet Valve Design
The high-speed spray valve developed for the characteristics of the selected object adopts
the unique mag-lev technology , so that the spray valve is matched with the equipment, the
service life is increased by 5 times, and the air consumption is reduced by 20%.
5. Automatic Fault Detection
A variety of automatic fault diagnosis can save a lot of time and increase work efficiency.
Technical Parameters:
| Model | Capacity (t/h) |
Optimized Carryover (bad:good) |
Sorting Accuracy (%) |
Power (Kw) |
Voltage (V/Hz) |
Dimension L×W×H(mm) |
Weight (kg) |
| XCS80 | 0.6-1.2 | >20:1 | >99.9 | 0.5-0.8 | 220/50 | 967*1553*1784 | 286 |
| CVG-5 | 3-5 | >20:1 | >99.9 | 3.3 | 220/50 | 2617*2077*1795 | 1532 |
| CVG-6 | 3-6 | >20:1 | >99.9 | 4.2 | 220/50 | 2955*2077*1795 | 1752 |
| CVG-7 | 3.5-7.5 | >20:1 | >99.9 | 5.0 | 220/50 | 3293*2077*1795 | 1910 |
| CVG-8 | 4-8.5 | >20:1 | >99.9 | 6.0 | 220/50 | 3641*2077*1795 | 2170 |
| CVG-10 | 5-11 | >20:1 | >99.9 | 7.05 | 220/50 | 4317*2077*1795 | 2520 |
| CVG-12 | 6-13 | >20:1 | >99.9 | 8.3 | 220/50 | 4993*2077*1795 | 2960 |
Note: Due to different raw materials and different impurities ratio , parameters above will
vary to some extent ,which are references for you choosing a suitable model.
Sorting Case :
FAQ:
1. How about after-sale services overseas?
After-sale services are available to overseas customers for training and installation.
Internet + mobile app, making the operation and maintenance more convenient and
easy.
2. How to use the machine?
We will provide the customers with the installation drawing and let our engineer to assist
with you if needed.
3. How could I believe that the machine will be workable for my materials?
Sample sent for testing is welcomed. Or you send us three photos,the raw material,
the good material (which is you want to accept) ,bad material (which is you want to reject).
We send the sorting video to you or make video call with you.
4. What is the warranty period?
We provide a one-year whole-machine warantty. And we supply the spare parts at our
purchasing price.
5. Will you accept L/C as payment?
Both L/C and T/T are OK .
6. Do you have any other spare parts for us?
Yes,we will supply you some basic spare parts .
7. Which machine will work together with our sorting machine that you can supply ?
Air compressor, Air tank, Air filters, Air dryer, light sources, cleaning brushes, etc.
