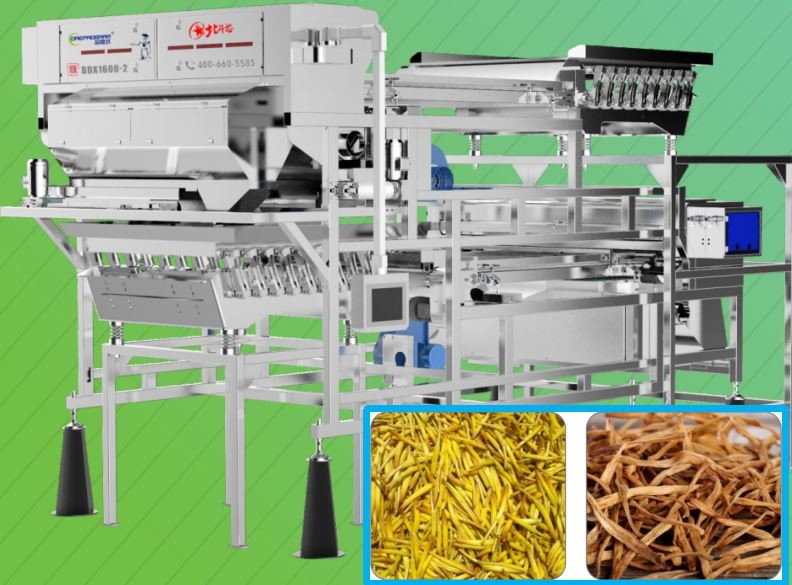

CCD camera Vegetable Sorting Machine For Dehydrated Daylily
1 set
CCD camera Vegetable Sorting Machine For Dehydrated Daylily
Features Gallery Product Description Request A Quote
Basic Infomation
Place of Origin: Hefei, Anhui, China
Brand Name: Coreprogram
Model Number: BDX1600-2
High Light:

CCD Camera Vegetable Sorting Machine


Daylily Vegetable Sorting Machine


CCD Camera Color Sorter

Payment & Shipping Terms
Packaging Details: Wooden Box
Delivery Time: 15 working days
Payment Terms: L/C, T/T
Supply Ability: 1000 sets per year
Dimension(mm): 5300x3750x3200
Power(Kw): 8.75
Capacity(t/h): 1.5-2
Lens: Phoenix
Filter: SMC
Sensor Chips: Toshiba
Processor: Altera
Weight(Kg): 2765
Product Description

Remote Control Reliable Quality Dehydrated Daylily Color Sorter

Main Features :
Full Color CCD Camera
Coreprogram vision system converts the captured pictures into signals through CCD camera, and then transmits the signals to a dedicated image processing system.
The 5400 pixels grade CCD color camera with sharpness up to 0.02mm2 can identify subtle color differences and defects successfully.
Advanced Image Processing System
Customize specific algorithm according to different sorting materials : excellent color sorting performance and sensitivity percentage could be set.
Lower Damage Ratio By Belt-type Structure Design
Horizontal transporting by uniform and stable conveyor makes less collision for the materials. So that the damage ratio is much lower than that of traditional chute-type color sorter.
Remote Interconnection System
Remotely diagnoses sorting machine and assist with equipment operation are available after obtaining customers’ authorization.
Precise Target Technology
Accurately identify materials’ defects and impurities, and blow the target defects through the combination of the latest CCD camera and target positioning program, which can increase the sorting accuracy and reduce the optimized carryover ratio a lot.
High-quality Customized Valves
With high frequency and strong power, they can accurately blow off some high density materials like minerals, quartz and many kinds of stones

Technical Parameters:

  • Model Layers Number Voltage
    Sorting Accuracy(%) Capacity
    BDX640-1 1 220/50 2.9 >99.9% 0.3-0.7 >10:1 3380x2560x1720 1100
    BDX640-2 2 220/50 3.4 >99.9% 0.4-1.0 >10:1 3830x2560x2530 2100
    BDX1280-1 1 220/50 4.7 >99.9% 0.6-1.0 >10:1 3380x3050x1720 1312
    BDX1280-2 2 220/50 8.2 >99.9% 1.0-1.5 >10:1 3830x3050x2530 2560
    BDX1600-2 2 220/50 8.75 >99.9% 1.5-2.0 >10:1 5300x3750x3200 2765
    BDX1920-1 1 220/50 5.85 >99.9% 1.3-1.8 >10:1 3380x3840x1720 1920
    BDX1920-2 2 220/50 9.5 >99.9% 2.0-2.5 >10:1 3830x3840x2530 3765

    Note: The above parameters take dehydrated carrots with 5% impurities ratio as an example .
              Due to different raw materials and different impurities ratio , parameters above will vary

              to some extent ,which are references for you choosing a suitable model.
    Working Schematic :


CCD camera Vegetable Sorting Machine For Dehydrated Daylily 0

       From the schematic ,we can learn that when the materials enter the chute (4),the front CCD camera(5) and the rear CCD camera(8) will recognize the shape and color of materials, if there are some specked ,splitted ,rotten and other defects,the ejector system(9) will release high-pressure air to change the path of rejected materials with defects into rejected hole (10) . The accepted materials will come out from the accepted hole (11).

Sorting Case:

                             Example Of Dehydrated Daylily Sorting

         CCD camera Vegetable Sorting Machine For Dehydrated Daylily 1
                                  Accepted                                                                    Rejected
