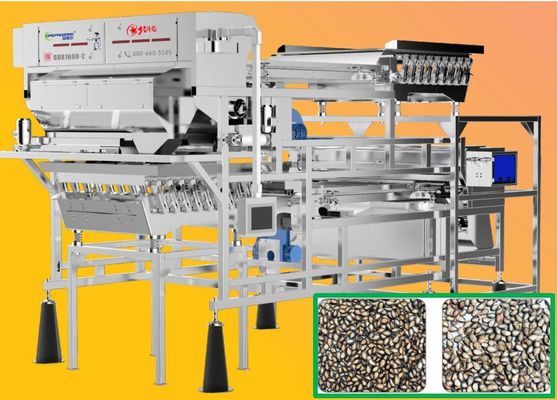

High Output Lifetime Support Melon Seeds Color Sorter Sorting Equipment
Advantages of CoreProgram :
1. Friendly UI
Intelligent operating platform, easy to learn , easy to operate, truly realize man-machine
dialogue, intelligent connection, and worry-free
2. Image Acquisition and Processing System
International high-end 2048 full-color line scan technology, DSP/FPGA international
cutting-edge processing technology, color and shape combination, multiple modes of
intelligent and complex algorithms, 10,000 kinds of materials can be selected at will.
3. Reliable Dust Cleaning System
High-speed airflow generated by the fan blows quickly to remove dust and light objects
on the front glass of the lens to ensure resolution and color selection accuracy.
4. Wet Separation
After the raw minerals are crushed in the wet condition, the color difference between
the accepted and the rejected is larger, the identification is clearer, and the sorting
is more accurate; saving the cost of drying equipment, each machine can save
more than USD30000 in dryer cost.
5. Environmental Protection
The continuous work of wet sorting avoids the dust problem encountered by dry sorting,
and fully meets the national environmental protection requirements.
6. Double vision lens
Rejected materials in all directions can be effectively identified in both top and bottom view ,
ensuring that the accuracy of one-time selection reaches more than 99%.
Technical Parameters:
| Model | Layers Number | Voltage (V/Hz) |
Power (Kw) |
Sorting Accuracy(%) | Capacity (t/h) |
Carryover Ratio |
Dimension(mm) (L*W*H) |
Weight (Kg) |
| BDX640-1 | 1 | 220/50 | 2.9 | >99.9% | 0.5-0.7 | >10:1 | 3380x2560x1720 | 1100 |
| BDX640-2 | 2 | 220/50 | 3.4 | >99.9% | 0.7-1.0 | >10:1 | 3830x2560x2530 | 2100 |
| BDX1280-1 | 1 | 220/50 | 4.7 | >99.9% | 1.0-1.5 | >10:1 | 3380x3050x1720 | 1312 |
| BDX1280-2 | 2 | 220/50 | 8.2 | >99.9% | 2.5-3.5 | >10:1 | 3830x3050x2530 | 2560 |
| BDX1600-2 | 2 | 220/50 | 8.75 | >99.9% | 3-3.5 | >10:1 | 5300x3750x3200 | 2765 |
| BDX1920-1 | 1 | 220/50 | 5.85 | >99.9% | 2.5-3.5 | >10:1 | 3380x3840x1720 | 1920 |
| BDX1920-2 | 2 | 220/50 | 9.5 | >99.9% | 3.5-4.0 | >10:1 | 3830x3840x2530 | 3765 |
Note: The above parameters take Peanuts with 10% impurities ratio as an example .
Due to different raw materials and different impurities ratio , parameters above
will vary to some extent ,which are references for you choosing a suitable model.
Sorting Case :
Example of Melon Seeds Sorting
Accepted Rejected
FAQ:
1. How about after-sale services overseas?
After-sale services are available to overseas customers for training and installation.
Internet + mobile app, making the operation and maintenance more convenient and easy.
2. How to use the machine?
We will provide the customers with the installation drawing and let our engineer to assist
with you if needed.
3. How could I believe that the machine will be workable for my materials?
Sample sent for testing is welcomed. Or you send us three photos,the raw material, the good
material (which is you want to accept) ,bad material (which is you want to reject). we send the
sorting video to you or make video call with you.
4. What is the warranty period?
We provide a one-year whole-machine warantty. And we supply the spare parts at our
purchasing price.
5. Will you accept L/C as payment?
Both L/C and T/T are OK .
6. Do you have any other spare parts for us?
Yes,we will supply you some basic spare parts .
7. Which machine will work together with our sorting machine that you can supply ?
Air compressor, Air tank, Air filters, Air dryer, light sources, cleaning brushes, etc
8. What's the capacity ?
The capacity in the table is a little different due to different impurities ratio .So we
generally provide a capacity range.
