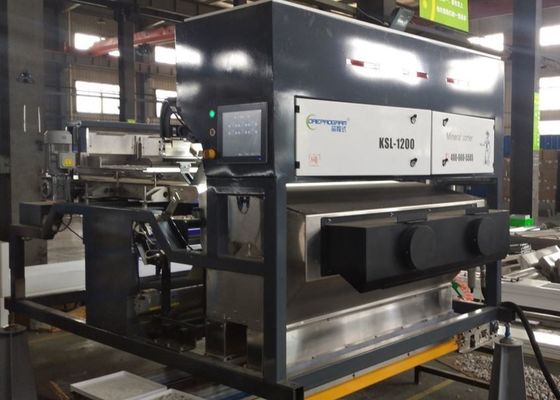

Large Particle 3-8cm Quartz Sorting Machine / Ore Color Sorter 2917*2075*1753mm
1 set
MOQ
Negotiable
Price
Large Particle 3-8cm Quartz Sorting Machine / Ore Color Sorter 2917*2075*1753mm
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: Hefei, Anhui, China
Brand Name: Coreprogram
Model Number: KSL-1200
High Light:

Quartz Sorting Machine

,

Ore Color Sorter

,

Ore Sorting Equipment

Payment & Shipping Terms
Packaging Details: Wooden Box
Delivery Time: 15 working days
Payment Terms: L/C, T/T
Specifications
HS CODE: 84371010
Sorting Accuracy(%): >99
Weight(Kg): 1150
Dimension(mm): 2917*2075*1753
Power(Kw): 3.3
Air Pressure(Mpa): 0.6-0.85
Output(t/h): 11- 22
Voltage(V/Hz): 220/50
Carryover Ratio: >10:1
Air Consumption(L/min): >3000
Product Description

High Accuracy Within 3 - 8cm Large Particle Quartz Color Sorter Sorting Machine​



 Product Superiority

1. Coreprogram mineral and ores sorting machine is characterized by high accuracy, excellent

    efficiency and high capacity.

2. Solve the problem of sorting under the harsh environment of dry ores such as high dust, high

     pollution, high corrosion, etc.

3. Fast belt speed, greatly improve the processing capacity and increase the output by more

     than 50% .

4. Wide selection range of ore particles  from 3 cm to 8 cm in size .


Sorting Case :

Large Particle 3-8cm Quartz Sorting Machine / Ore Color Sorter 2917*2075*1753mm 0           Large Particle 3-8cm Quartz Sorting Machine / Ore Color Sorter 2917*2075*1753mm 1            Large Particle 3-8cm Quartz Sorting Machine / Ore Color Sorter 2917*2075*1753mm 2

          Raw  Material                                     Accepted                                          Rejected

FAQ:
1. How about after-sale services overseas?
    After-sale services are available to overseas customers for training and installation.
    Internet + mobile app, making the operation and maintenance more convenient and easy.
2. How to use the machine?
    We will provide the customers with the installation drawing and let our engineer to
    assist with you if needed.
3. How could I believe that the machine will be workable for my materials?
    Sample sent for testing is welcomed. Or you send us three photos,the raw material,
    the good material (which is you want to accept) ,bad material (which is you want to reject).
    We send the sorting video to you or make video call with you.
4. What is the warranty period?
    We provide a one-year whole-machine warantty. And we supply the spare parts at our
    purchasing price.
5. Will you accept L/C as payment?
    Both L/C and T/T are OK .
6. Do you have any other spare parts for us?
    Yes,we will supply you some basic spare parts .
7. Which machine will work together with our sorting machine that you can supply ?
    Air compressor, Air tank, Air filters, Air dryer, light sources, cleaning brushes, etc

8. What's the capacity ?
    The capacity in the table is a little different due to different impurities ratio . So
     we generally prpvide an output range.
