Remote Control Intelligent Infrared Color Sorter Sorting Machine
Advantages Of Coreprogram Color Sorter :
1. With the new infrared technology, the machine targeting the nuts industry makes the crust and
internal separation perfect.
2. Measures are taken for splashing granules in the product streams, and the product provides
the most efficient and stable flow.
3. The fourth-generation FPGA processor technology provides excellent processing speed and
massive data efficiency.
4. Faster and easier to use with new touch panel and software .
5. Closed-feed system, effective vibrator and duct protection, function of heavy dust handling
with top dust extraction equipment.
6. The automatic background adjustment function, open frame and special unloading system
facilitates make it easy for installation, operation and general maintenance of the machine.
7. The model is equipped with a new generation of lenses and camera. It captures the HD
images for high accuracy and has high level ability to detect the defects.
Technical Parameters:
| Model | Capacity (t/h) |
Optimized Carryover (bad:good) |
Sorting Accuracy (%) |
Power (Kw) |
Voltage (V/Hz) |
Dimension L×W×H(mm) |
Weight (kg) |
| XCS80 | 0.8-1.2 | >20:1 | >99.9 | 0.5-0.8 | 220/50 | 967*1553*1784 | 286 |
| CVG-5 | 3-6 | >20:1 | >99.9 | 3.3 | 220/50 | 2617*2077*1795 | 1532 |
| CVGI-6 | 3-7.5 | >20:1 | >99.9 | 4.2 | 220/50 | 2955*2077*1795 | 1752 |
| CVG-7 | 3.5-8.5 | >20:1 | >99.9 | 5.0 | 220/50 | 3293*2077*1795 | 1910 |
| CVG-8 | 4-9.5 | >20:1 | >99.9 | 6.0 | 220/50 | 3641*2077*1795 | 2170 |

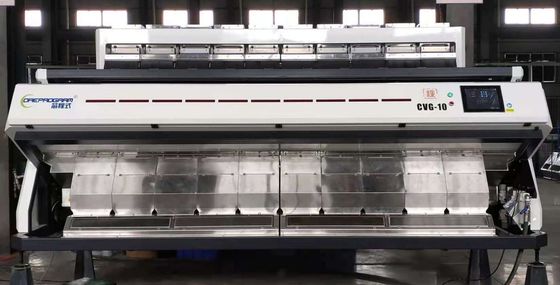

| CVG-10 | 5-12 | >20:1 | >99.9 | 7.05 | 220/50 | 4317*2077*1795 | 2520 |
| CVG-12 | 6-14 | >20:1 | >99.9 | 8.3 | 220/50 | 4993*2077*1795 | 2960 |
Note: The parameters above tested takes 9% impurities rice for example. Due to different
raw materials and different impurities ratio , parameters above will vary to some extent ,
which are references for you choosing a suitable model.
Working Schematic :
