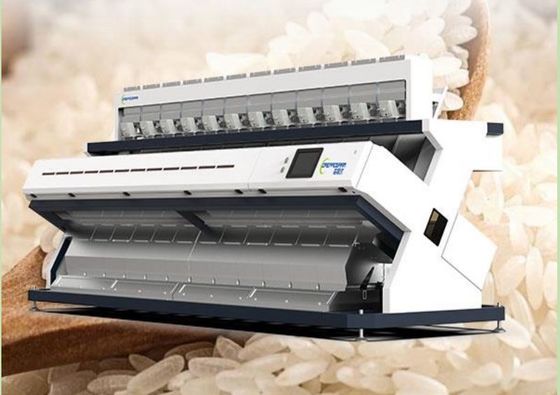

Coreprogram 12 Chutes RGB Color Sorter High Capacity Rice Sorting Machine
1 set
MOQ
Negotiable
Price
Coreprogram 12 Chutes RGB Color Sorter High Capacity Rice Sorting Machine
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: Hefei, Anhui, China
Brand Name: Coreprogram
Model Number: CVR-12
High Light:

RGB Color Sorter

,

12 Chutes Rice Sorting Machine

,

RGB Rice Sorting Machine

Payment & Shipping Terms
Packaging Details: Wooden Box
Delivery Time: 15 working days
Payment Terms: L/C, T/T
Supply Ability: 1000 sets per year
Specifications
Material: Metalic
Capacity (t/h): 6 - 13
Sorting Accuracy: ≥99.9%
Carry-over Ratio: >20:1
Power: 8.3Kw
Voltage (V/Hz): 220/50
Product Description

Coreprogram 12 Chutes High Capacity RGB Rice Color Sorter

Product Superiority :
1. Brand new photoelectric design LED light source, More energy-saving, low heat.
2. The light source and the sorting box are set independently to reduce the interference of dust
    on the material sorting .
3. Unique bottom exhaust dust removal system, excellent dust removal effect, stable performance
    in dusty environment .
4. Easy to learn and operate .
5. Simple optical system design, precise automatic calibration system , well-designed man-machine
    interface .

Technical Parameters:

Model Capacity
(t/h)
Optimized Carryover
(bad:good)
Sorting Accuracy
(%)
Power
(Kw)
Voltage
(V/Hz)

Dimension

L×W×H(mm)

Weight

(kg)

XCS80 0.8-1.2 >20:1 >99.9 0.5-0.8 220/50 967*1553*1784 286
CVG-5 3-5 >20:1 >99.9 3.3 220/50 2617*2077*1795 1532
CVG-6 3.5-6 >20:1 >99.9 4.2 220/50 2955*2077*1795 1752
CVG-7 3.5-8 >20:1 >99.9 5.0 220/50 3293*2077*1795 1910
CVG-8 4-9 >20:1 >99.9 6.0 220/50 3641*2077*1795 2170
CVG-10 5-12 >20:1 >99.9 7.05 220/50 4317*2077*1795 2520
CVG-12 6-13 >20:1 >99.9 8.3 220/50 4993*2077*1795 2960

Note: Due to different raw materials and different impurities ratio , parameters above
         will vary to some extent ,which are references for you choosing a suitable model.

Working Schematic :

Coreprogram 12 Chutes RGB Color Sorter High Capacity Rice Sorting Machine 0

Sorting Case :
Coreprogram 12 Chutes RGB Color Sorter High Capacity Rice Sorting Machine 1

FAQ:
1. How about after-sale services overseas?
    After-sale services are available to overseas customers for training and installation.
    Internet + mobile app, making the operation and maintenance more convenient and
    easy.
2. How to use the machine?
    We will provide the customers with the installation drawing and let our engineer to
    assist with you if needed.
3. How could I believe that the machine will be workable for my materials?
    Sample sent for testing is welcomed. Or you send us three photos,the raw material,
    the good material (which is you want to accept) ,bad material (which is you want to reject).
    We send the sorting video to you or make video call with you.
4. What is the warranty period?
    We provide a one-year whole-machine warantty. And we supply the spare parts at our
    purchasing price.
5. Will you accept L/C as payment?
    Both L/C and T/T are OK .
6. Do you have any other spare parts for us?
    Yes,we will supply you some basic spare parts
7. Which machine will work together with our sorting machine that you can supply ?
    Air compressor, Air tank, Air filters, Air dryer, light sources, cleaning brushes, etc

Our Service:
• One year quality warranty for the machine and spare parts.
• Engineers service for installation overseas.
• Whole-life after-sales service and free consultation.
• Customized requirements available.
• Technician guide at the site.
• 24 Hrs online service.
